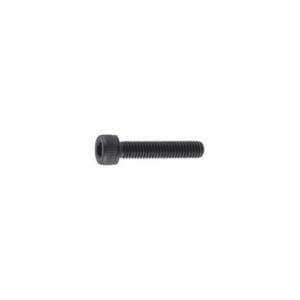

Socket Head Screw, 34-16 X 2-14 05097886, used for the high pressure jet pump.
Socket head screws, also known as Allen head screws, are commonly used in high pressure applications such as the 90,000 psi high pressure jet pump.
These screws are designed with a hexagonal socket in the head, which allows for easy installation and removal using a hex key or Allen wrench.
When it comes to an high pressure jet pump, the choice of screw material is critical.
The screw must be able to withstand the extreme pressure and not deform or fail under load.
In the case of a 90,000 psi high pressure jet pump, the screws are typically made of high-strength alloys like stainless steel or titanium.
Сборка усилителя 72170165
Пункт | Номер детали | Описание | Количество | Пункт | Номер детали | Описание | Количество |
1 | 05146592 | Прокладка, опора Topworks | 2 | 14 | 72162253 | Вантуз | 2 |
2 | 20476377 | Поддержка, Topworks | 2 | 15 | 05130091 | Картридж гидравлического уплотнения | 2 |
3 | 10118206 | Уплотнительное кольцо, 1,31×1,56× .13 | 2 | 16 | 72175989 | Фланец фиксатора втулки | 2 |
4 | 05144514 | Гидравлический цилиндр | 1 | 17 | 72158494 | Узел уплотнения UHP | 2 |
5 | 05098991 | Винт с торцевой головкой, 3/8-16×3-3/4 | 8 | 18 | 72166738 | Цилиндр UHP | 2 |
6 | 95688743 | Стопорная шайба, .38 | 8 | 19 | 72163802 | Лайнер | 2 |
7 | 72101190 | Поршень в сборе | 1 | 20 | 20474325 | Шпилька, 1-1/8-12×18.31 | 8 |
8 | 10074771 | Уплотнительное кольцо, 5,25×5,50× .13 | 2 | 21 | 72170157 | Уплотнительная головка в сборе | 2 |
9 | 05120092 | Резервное кольцо, 5.25×5.50×.13 | 2 | 22 | 72178493 | Сборка фланца | 2 |
10 | 72175997 | Гидравлическая головка блока цилиндров | 2 | 23 | 20464590 | Плоская шайба, 1.13 | 8 |
11 | 05097886 | Винт с торцевой головкой, 3/4-16×2-1/4 | 12 | 24 | 20461761 | Шестигранная гайка, 1-1/8-12 | 8 |
12 | 05144183 | Распорка в сборе, бесконтактный выключатель | 2 | 25 | 20489339 | Адаптер, JIC/труба, 50×.38 | 1 |
05144191 | Уплотнительное кольцо, .69×.88×.09 | 26 | 72176756 | Уплотнительное кольцо, 3,88×4,25× .19 | 6 | ||
13 | 72141569 | Комплект, бесконтактный выключатель | 2 | ||||
| 72134224 | Бесконтактный переключатель | ||||||
95119012 | Винт с торцевой головкой, 1/4-20×1 |
The size of the socket head screw used in the high pressure jet pump will depend on the specific design and requirements of the pump.
The diameter and length of the screw must be carefully selected to ensure that it can handle the load and pressure it will be subjected to.
Overall, socket head screws are a popular choice for high pressure applications due to their strength, ease of use, and availability in a range of materials and sizes.
In addition to their strength and ease of use, socket head screws have several other advantages that make them well-suited for high pressure environments.
For example:
1. Low profile
The low-profile design of socket head screws makes them ideal for applications where space is limited.
This is especially important in a high pressure jet pump, where components are often closely packed together.
2. High torque capacity
Because of their hexagonal shape, socket head screws can withstand higher torque loads than other types of screws.
This is important in a high pressure jet pump, where screws may need to be tightened to a very high torque to prevent leakage or failure.
3. Resistance to vibration
Socket head screws are less likely to loosen due to vibration than other types of screws, which is important in a high pressure jet pump where vibration can be a problem.
4. Corrosion resistance
Many high pressure systems operate in harsh environments where corrosion can be a problem.
Socket head screws made from materials like stainless steel or titanium offer excellent corrosion resistance, which helps ensure the longevity and reliability of the system.
When selecting socket head screws for a high pressure jet pump, it’s important to choose the right material, size, and torque specifications to ensure optimal performance and reliability.
Contact us for assistance.
