Descrição

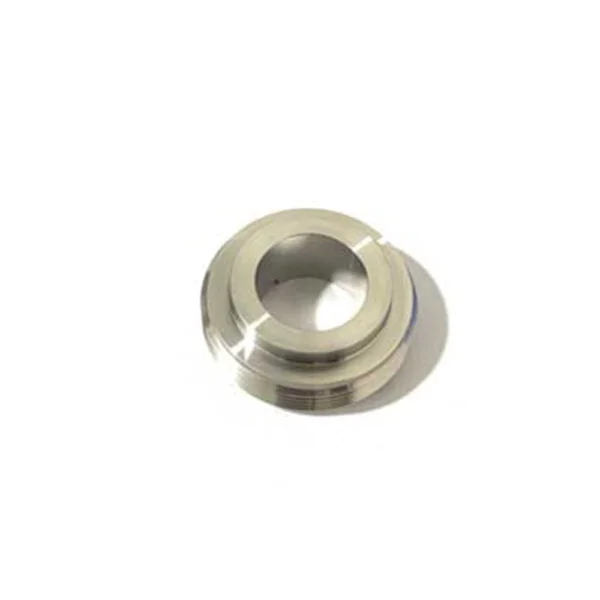

CP022021/593 Anel de rosqueamento Máquina de corte a jato de água

Knowledge for waterjet cutting machine and waterjet cutting machine part:

Waterjet Cutting Machine Part HP Seal Kit Tool
Waterjet Cutting Machine Part End cap and End bell viewing hole leakage please replace the corresponding HP Seal
End bell observation hole leaking oil, please replace the oil seal
Note: Screw the HP Seal Kit nut on the high pressure cylinder, place the HP Seal Kit sleeve with the small diameter facing down and the large diameter facing up in the HP Seal Kit nut.
Put the HP Seal rubber ring (O-ring on the bottom) into the HP Seal tooling sleeve, squeeze the HP Seal rubber ring with the HP Seal tooling press post and use a leather hammer.
Then put the HP Seal ring into the HP Seal tooling positioning sleeve and press the HP Seal ring with the HP Seal tooling press post.
Until completely entered, note that HP Seal rubber ring and HP Seal steel ring should not be installed at the same time, it is best to install separately, and pay attention to the installation direction of HP Seal steel ring, etc..
