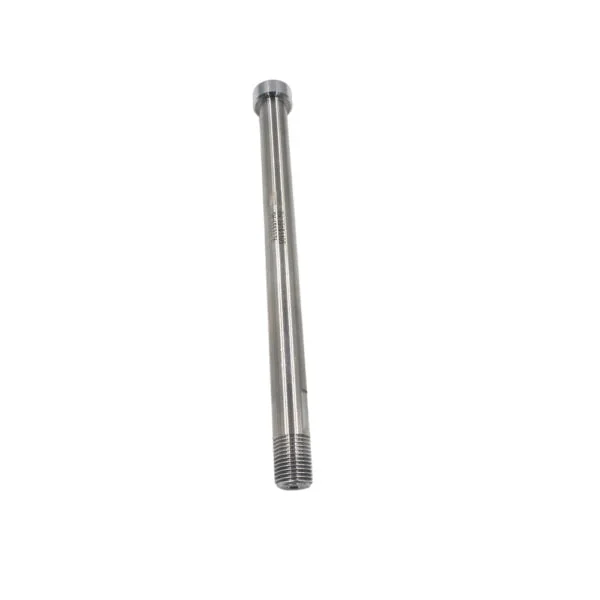

Waterjet cutting head spare parts 10138527 nozzle tube
Installation: used on the waterjet cutting head, connect with the nozzle nut
The specification of the waterjet cutting head nozzle tube:
10138527 8″ x9/16 nozzle tube with standard connection for Autoline nozzle nut
The following are some other nozzle tubes for your choice:
10181113, 3” x 3/8 Nozzle Tube with Standard Connection for .38 x 3, Nozzle Nut Connection
10138402, 4” x 3/8 Nozzle Tube with Standard Connection for .38 x 4, Nozzle Nut Connection
10138410, 5” x 3/8 Nozzle Tube with Standard Connection for .38 x 5, Nozzle Nut Connection
10138428, 6” x 3/8 Nozzle Tube with Standard Connection for .38 x 6, Nozzle Nut Connection
10138436, 7” x 3/8 Nozzle Tube with Standard Connection for .38 x 7, Nozzle Nut Connection
10138444, 8” x 3/8 Nozzle Tube with Standard Connection for .38 x 8, Nozzle Nut Connection
10138451, 9” x 3/8 Nozzle Tube with Standard Connection for .38 x 9, Nozzle Nut Connection
10138469, 10” x 3/8 Nozzle Tube with Standard Connection for .38 x 10, Nozzle Nut Connection
05013735, 12” x 3/8 Nozzle Tube with Standard Connection for .38 x 12, Nozzle Nut Connection
10138535, 10193100
FAQ for waterjet cutting machine – What is a waterjet cutting head?
The waterjet cutting head is a device for water jetting equipment to cut objects and spray water.
It is divided into two types: water only cutting head and abrasive cutting head. The water only cutting head only erodes the material with water jet, which is suitable for cutting soft materials, such as paper, tissue paper, diapers, etc. The abrasive-adding cutting head adds abrasives into the water jet, and uses the abrasive particles to erode the material. It is suitable for cutting hard materials, such as metal, stone, ceramics, etc.
The core components of the waterjet cutting head are nozzles and mixing tubes. The nozzles are used to converge high-pressure water into fine water streams, and the mixing tubes are used to accelerate sand particles and mix them with the water stream. The diameter and material of the nozzle and mixing tube affect the width, speed and accuracy of the cut. Waterjet cutting platforms can be classified according to different standards such as equipment size, pressure, technical principle, and mechanical structure. The common ones are large water jet and small water jet, high pressure type and low pressure type, front mixing type and post mixing type, cantilever type and gantry type, etc.
