Descrição

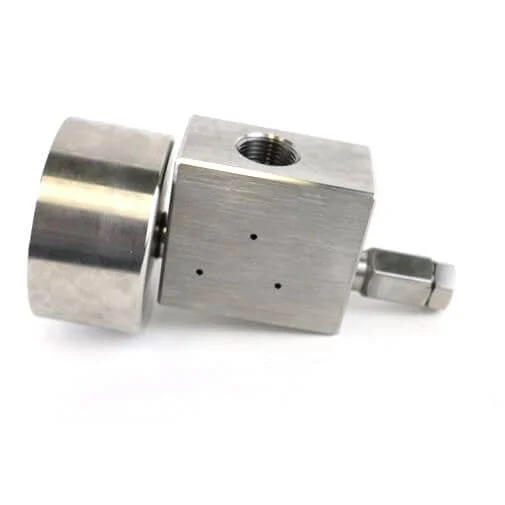

The Actuator Assembly 20468634 is a component used in 90k industrial high pressure water pump.
Item | Part Number | Descrição | Quantity | Item | Part Number | Descrição | Quantity |
1 | 05146592 | Gasket, Topworks Support | 2 | 14 | 72162253 | Plunger | 2 |
2 | 20476377 | Support, Topworks | 2 | 15 | 05130091 | Hydraulic Seal Cartridge | 2 |
3 | 10118206 | O-Ring, 1.31×1.56× .13 | 2 | 16 | 72175989 | Flange do Retentor de Buchas | 2 |
4 | 05144514 | Hydraulic Cylinder | 1 | 17 | 72158494 | UHP Seal Assembly | 2 |
5 | 05098991 | Socket Head Screw, 3/8-16×3-3/4 | 8 | 18 | 72166738 | UHP Cylinder | 2 |
6 | 95688743 | Lock Washer, .38 | 8 | 19 | 72163802 | Liner | 2 |
7 | 72101190 | Piston Assembly | 1 | 20 | 20474325 | Stud, 1-1/8-12×18.31 | 8 |
8 | 10074771 | O-Ring, 5.25×5.50× .13 | 2 | 21 | 72170157 | Sealing Head Assembly | 2 |
9 | 05120092 | Backup Ring, 5.25×5.50× .13 | 2 | 22 | 72178493 | Flange Assembly | 2 |
10 | 72175997 | Hydraulic Cylinder Head | 2 | 23 | 20464590 | Flat Washer, 1.13 | 8 |
11 | 05097886 | Socket Head Screw, 3/4-16×2-1/4 | 12 | 24 | 20461761 | Hex Nut, 1-1/8-12 | 8 |
12 | 05144183 | Spacer Assembly, Proximity Switch | 2 | 25 | 20489339 | Adapter, JIC/Pipe, 50× .38 | 1 |
05144191 | O-Ring, .69× .88× .09 | 26 | 72176756 | O-Ring, 3.88×4.25× .19 | 6 | ||
13 | 72141569 | Kit, Proximity Switch | 2 | ||||
72134224 | Interruptor de proximidade | ||||||
95119012 | Socket Head Screw, 1/4-20×1 |
An actuator assembly is a mechanical part that is used to transform energy into motion.
In the context of a waterjet pump, it is typically used to control the position of a valve or other control mechanism.
The specific design and specifications of the Actuator Assembly 20468634 are depending on our manufacturer and your model of industrial high pressure water pump.
However, in general, an actuator assembly may consist of several components, including a piston, cylinder, and control valve.
The piston and cylinder are typically made from a high-strength material such as stainless steel or titanium, which can withstand the extreme pressures and forces involved in the waterjet system.
The piston is housed inside the cylinder, and is able to move back and forth to actuate the control valve.
The control valve is typically a solenoid valve or other type of valve that is used to regulate the flow of water through the industrial high pressure water pump.
The actuator assembly is designed to move the control valve into the open or closed position as needed to control the flow of water through the system.
Proper maintenance and inspection of the Actuator Assembly is crutial to make sure its continued reliability and performance.
Over time, the components of the assembly may become worn or damaged, which could lead to issues with the control of the industrial high pressure water pump.
Regular inspection and replacement of worn or damaged parts can help prevent these problems and ensurethe safe and efficient operation of the industrial high pressure water pump.
Any other questions, please fale conosco.
