Jato de água portátil is new product in the waterjet industry, electric dual-drive electric portable waterjet trolley Hello everyone, today we will introduce the electric dual-drive portable waterjet cutting car independently developed by our company, but before that, we must first understand the components and principles of the portable waterjet, so that everyone can learn more Learn about portable waterjet cutting.

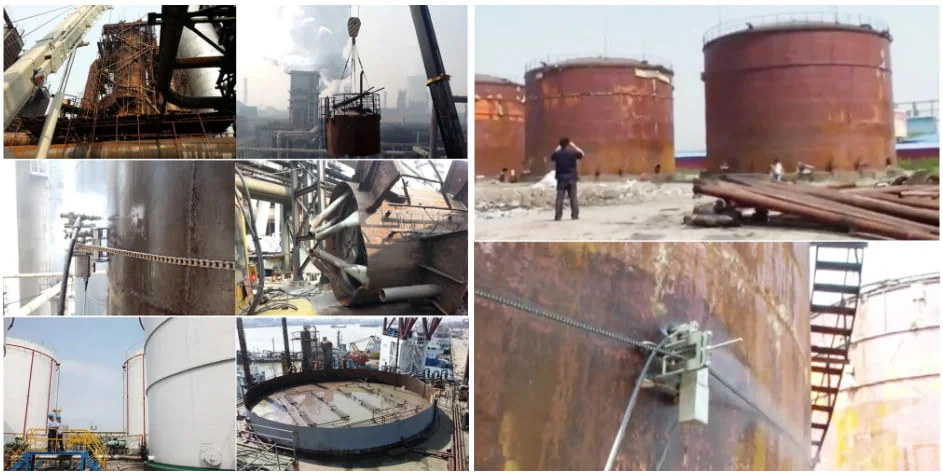

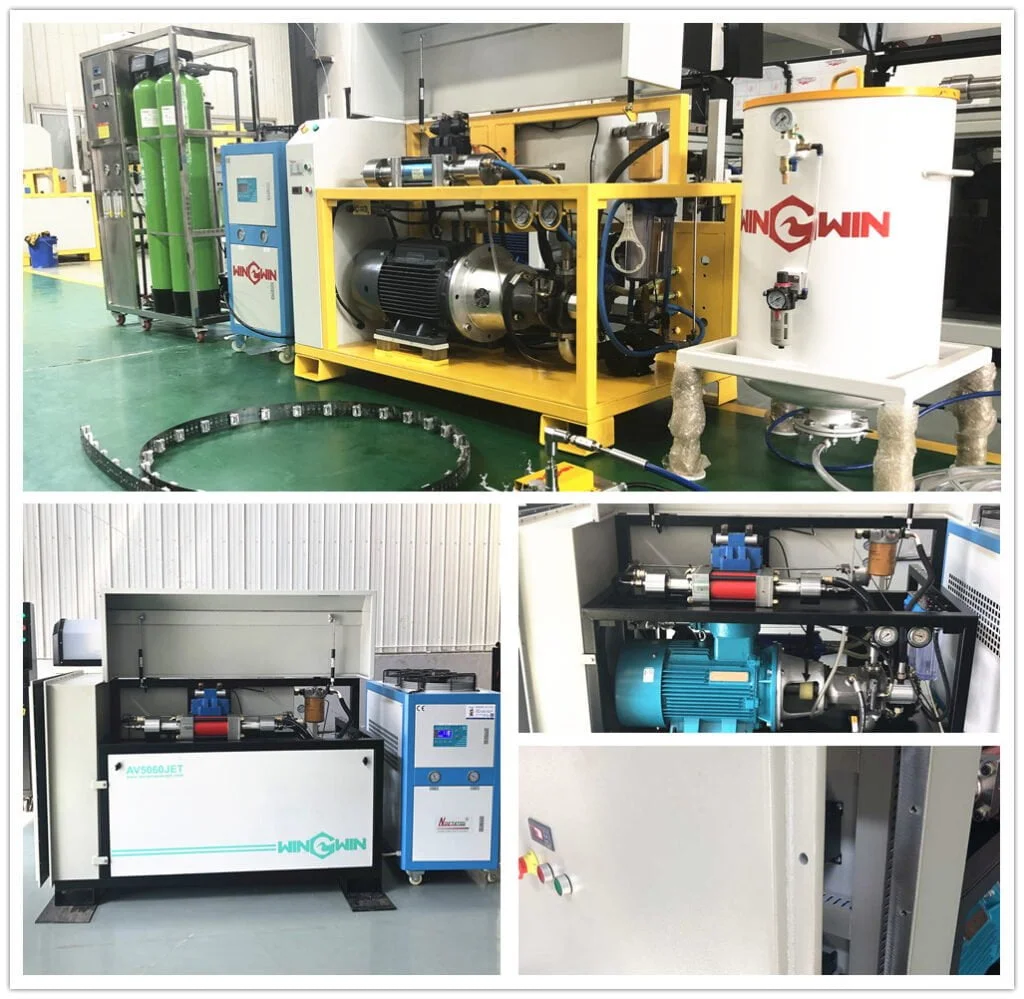

Os componentes do jato de água portátil cutting: cutter head (handheld or trolley), water filtration system, booster pump, sand tank, cooling system and high pressure pipe. The principle of waterjet cutting: use the booster pump to boost the normalized water, pressurize it to 350Mpa or higher, and use the powerful potential energy of the high-pressure water jet to cut the material. Portable waterjet cutting has the advantages of flexibility, easy to carry, wide cutting range,
High safety and environmental protection, so waterjet cutting is often suitable for the removal of industrial oil tanks, the cutting of natural gas pipelines, the cutting of cement and steel bars in the construction industry, etc. As shown in the picture, this is an electric dual-drive portable water cutting trolley independently developed by our company.
Compared with traditional water cutting trolleys, its power is stronger and it can walk vertically on the wall in a straight line without fear of the swing of the high-pressure pipe. The electro-pneumatic two-in-one is more convenient to adapt to the field working environment, and the two electro-pneumatic systems can be accurately controlled, so there is no need to worry about the cutting effect of the trolley due to the system. It can also choose chain, track, and magnetic three driving methods, which can be adapted to most cutting conditions, which can be said to be very convenient.
Jato de água portátil para corte de jato de água de tubulação de óleo
This picture shows the cutter head of the electric dual-drive portable waterjet. The cutter head and its accessories have been checked layer by layer and carefully crafted. Moreover, it has a simple structure, is convenient for maintenance and has a particularly low failure rate. The electric dual-drive portable waterjet combines the following advantages: optional dual drive, low failure rate of Seiko cutter head, super-strong magnetic adsorption can walk on the wall as if walking on the ground, strong power and no fear of high-pressure pipe swing, etc., So don’t you want to own such a portable waterjet equipment?
Abrasive waterjet platform uses the huge impact force of high-pressure waterjet and mixes with abrasives to convert potential energy into mechanical energy, so as to achieve the purpose of cutting materials. What we are going to talk about today is the abrasive waterjet cutting platform and its disadvantages and advantages as well as some of its other attributes. Abrasive waterjet platform mainly consists of the following parts:
There are three types of domestic abrasive waterjet platforms: AC5 axis (swing angle ±68°) AB5 axis (swing angle ±10°) three-axis (vertical cutting cannot swing angle) The materials it can process include rubber, ceramics, non-ferrous metals, Portable Waterjet，alloy steel, sponge, stone, acrylic plates, etc. It has wide applicability and this kind of waterjet cutting is not like flames or lasers. To separate the materials, it uses high-pressure waterjet mixed with sand to wear and separate the materials, so as to ensure that the materials themselves will not have large-scale changes. Of course, there will be no burning of the material itself, so no toxic and harmful gases can be said to be very environmentally-friendly.
However, Portable Waterjet，abrasive waterjet also has disadvantages. The first one is that it can only process flat surfaces (2D), and it can’t cut complex surfaces such as car interiors and interiors at all (robot waterjet will not have this disadvantage). In addition, the sand supply tank in the sand supply system of the abrasive waterjet platform is easy to block, so it is necessary to choose an automatic sand supply tank without any electronic components, so as to avoid time-consuming and laborious maintenance.
How to choose a good abrasive platform?
First of all, it depends on whether the pressure of the booster pump is stable enough, how much pressure is provided, whether the water flow is continuous, and so on. The second is the replacement frequency of wearing parts, whether it is domestic or imported, and whether it is a brand is very important. What is the range of cutting accuracy (generally 0.1-0.3mm)?
How thick can the abrasive waterjet cutting cut? Portable Waterjet
The cutting thickness is different for different materials. Take the steel plate as an example: the pressure required for a 300mm steel plate is 420Mpa, the higher the pressure, the greater the cutting thickness. Questions about waterjets are welcome, if necessary, please contact us! 1. The characteristics of the cutting material (thickness and rigidity) determine the strength of the water pressure. The thicker and harder the
