Description

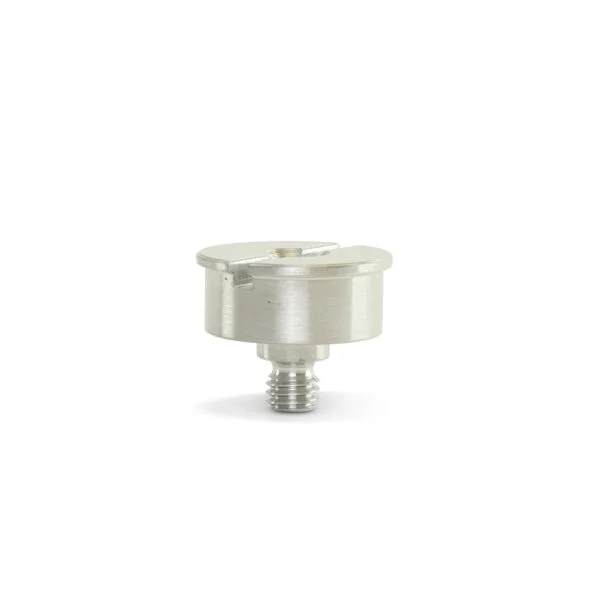

05144670 RETAINER POPPET.LP WATER SLIV FD Head Waterjet
| Item | Product NO. | Product Name | Picture |
| 1 | 05144647 | HP Cylinder |  |
| 2 | 05144688 | Sealing head assembly |  |
| 3 | 05144696 | Sealing head spacer |  |
| 4 | 05144712 | Cylinder liner |  |
| 5 | 05149703 | Seal assembly |  |
| 6 | 05130091 | Hydraulic cartridge |  |
| 7 | 05119151 | Ceramic plunger |  |
| 8 | 05116561 | HP poppet |  |
| 9 | 05116751 | Poppet pin |  |
| 10 | 05144670 | Poppet retainer |  |
Knowledge for waterjet cutting machine and waterjet spare parts.
About ball screw and linear guide in water jet cutting platform. (05144670 RETAINER POPPET)
(05144670 RETAINER POPPET) Ball screws and liner guide in water jet cutting platforms are one of the core components of the robot, and their quality and performance directly affect the accuracy and stability of the robot. Here are some introductions about the silk rod and guide rail in the water jet cutting platform:
Ball screw: silk rod is a transmission device on the water jet cutting platform, mainly used to control the robot’s movement in the Z-axis direction. The silk rod generally adopts high-precision ball screw, and its advantages are high precision, high transmission efficiency, low noise, long life and so on. The quality and precision of the Ball screw directly affects the control accuracy and stability of the robot in the Z-axis direction. (05144670 RETAINER POPPET)
Linear guide: The linear guide is a kind of support device on the water jet cutting platform, which is mainly used to control the robot’s movement in the X and Y axis direction. The guide rail generally adopts high-precision linear guide, which has the advantages of high precision, high stiffness, long life and so on. The quality and accuracy of the guideway directly affects the control accuracy and stability of the robot in the X, Y axis direction. (05144670 RETAINER POPPET)
It should be noted that the performance and quality of the screw and guideway not only depend on their own design and manufacture, but also affected by the use of the machine and maintenance and other factors. Therefore, when using the water jet cutting platform, you need to pay attention to regular maintenance and repair of the screw and guide rail to ensure the accuracy and stability of the machine. At the same time, care needs to be taken to avoid impact or overload on the screw and guide rail when the machine is running, so as not to affect its service life and performance. (05144670 RETAINER POPPET)
If you are interested in any waterjet products from Win-Win Water Jet Supplier, contact me please.
The below is waterjet cutting machine from Win-Win head waterjet:
