Description

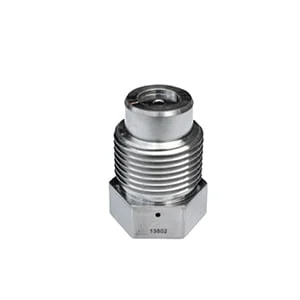

13802 Adaptor Waterjet Cutting Head Part
 | 10078426 | 1/4 Collar | ||
 | 10078459 | 1/4 Gland Nut | ||
| 10078715 | 3/8 Collar | ||
 | 10078129 | 3/8 Gland Nut | ||
 | 11392 | 3/8 Reducer | ||
 | 12861 | Abrasive Body | ||
 | 12752 | Abrasive Inlet | ||
 | 500-20-0130 | Abrasive Inlet | ||
 | 13732 | Actuator | ||
 | 12686 | Actuator Rebuild Kit | ||
 | 12523 | Adapter Plate | ||
 | 13802 | Adaptor | ||
 | 500-20-0013 | ADAPTOR 3/8 MALE TECH HEAD | ||
 | 5077029 | Autoline Diamond Orifice 0.010″ | ||
| 05077029 | Autoline Diamond Orifice 0.010″ | ||
 | 5101753 | Autoline Diamond Orifice 0.011″ | ||
| 05101753 | Autoline Diamond Orifice 0.011″ | ||
 | 5077300 | Autoline Diamond Orifice 0.012″ | ||
| 05077300 | Autoline Diamond Orifice 0.012″ | ||
 | 5136098 | Autoline Diamond Orifice 0.013″ | ||
| 05136098 | Autoline Diamond Orifice 0.013″ | ||
 | 5077037 | Autoline Diamond Orifice 0.014″ | ||
| 05077037 | Autoline Diamond Orifice 0.014″ | ||
 | 5109103 | Autoline Sapphire Orifice 0.010″ | ||
| 05109103 | Autoline Sapphire Orifice 0.010″ |
Knowledge of waterjet cutting machine and Waterjet Cutting Head Part:
Are the parts of a high pressure water jet cutting machine made of production materials?
• High-pressure pump: provide high-pressure water flow, generally using direct drive pump or booster pump, the pressure can reach above 100MPa
• Cutting head: high-pressure water flow through the nozzle to form a high-speed jet, which can be divided into pure water cutting head and abrasive water cutting head
• Sand mixer: add abrasives to the water jet to improve the cutting ability, generally use pomegranate sand or corundum, etc.
• Water tank: used to collect cutting waste water and abrasives to prevent environmental pollution
• X-Y moving system: control the moving track of the cutting head to realize CNC cutting
• PC-based controller: run waterjet control software, set cutting parameters and graphics, and control the entire cutting process
The parts of the high-pressure water jet cutting machine are made of different production materials, and are generally required to have properties such as high pressure resistance, wear resistance, and corrosion resistance. For example:
• The parts of high-pressure pumps are generally made of stainless steel, copper, ceramics and other materials
• The nozzle of the Waterjet Cutting Head Part is generally made of precious stones, ceramics, hard alloy and other materials
• The parts of the Waterjet Cutting Head Part sand mixer are generally made of stainless steel, aluminum alloy, plastic and other materials
• The water tank is generally made of steel plate, stainless steel and other materials
• The parts of the X-Y moving system are generally made of aluminum alloy, steel and other materials
• The parts of PC-based controllers generally use materials such as electronic components and plastics
If you want to know other pumps or waterjet pump parts and Waterjet Cutting Head Part, we produce various brands of waterjet pumps, Waterjet Cutting Head Part and waterjet cutting machine, contact me please
