90K Hydrojet Cutter 20468617 Valve Body

Category:

Description

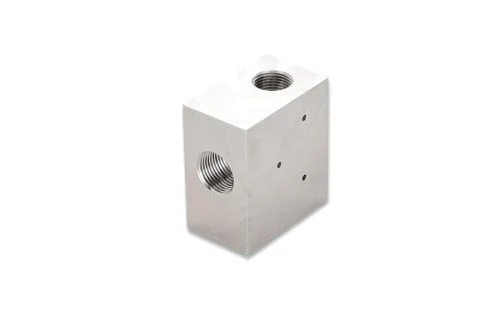

The Valve Body 20468617 is a critical component of a 90K hydrojet cutter.

It is part of the intensifier assembly and is responsible for regulating the flow of high-pressure water through the pump.

The Valve Body 20468617 is designed to be durable and long-lasting, but it can wear over time due to the abrasive nature of the waterjet cutting process.

Intensifier Assembly 72170165
Intensifier Assembly 72170165

Item

Part NumberDescriptionQuantityItemPart NumberDescriptionQuantity

1

05146592Gasket, Topworks Support21472162253Plunger

2

2

20476377Support, Topworks21505130091Hydraulic Seal Cartridge

2

3

10118206O-Ring, 1.31×1.56× .1321672175989Bushing Retainer Flange2

4

05144514Hydraulic Cylinder11772158494UHP Seal Assembly

2

5

05098991Socket Head Screw, 3/8-16×3-3/481872166738UHP Cylinder

2

6

95688743Lock Washer, .3881972163802Liner

2

7

72101190Piston Assembly12020474325Stud, 1-1/8-12×18.31

8

8

10074771O-Ring, 5.25×5.50× .1322172170157Sealing Head Assembly

2

9

05120092Backup Ring, 5.25×5.50× .1322272178493Flange Assembly

2

10

72175997Hydraulic Cylinder Head22320464590Flat Washer, 1.13

8

11

05097886Socket Head Screw, 3/4-16×2-1/4122420461761Hex Nut, 1-1/8-12

8

12

05144183Spacer Assembly, Proximity Switch22520489339Adapter, JIC/Pipe, 50× .38

1

05144191

O-Ring, .69× .88× .092672176756O-Ring, 3.88×4.25× .19

6

13

72141569Kit, Proximity Switch2

72134224Proximity Switch

95119012

Socket Head Screw, 1/4-20×1

Hydrojet Cutter 20468617 Valve Body
Hydrojet Cutter 20468617 Valve Body

1. Material

The Valve Body 20468617 is typically made from a high-strength material such as stainless steel or titanium.

These materials are able to withstand the high-pressure and high-temperature conditions of the waterjet cutting process, and are resistant to wear and corrosion.

2. Function

The Valve Body 20468617 is responsible for regulating the flow of high-pressure water through the intensifier pump in hydrojet cutter.

It controls the opening and closing of the high-pressure water inlet valve, and is designed to ensure precise control of the water flow.

3. Wear and tear

The Valve Body 20468617 can wear over time due to the abrasive nature of the waterjet cutting process.

Wear on the valve body can lead to reduced cutting performance, leaks, and other issues with the hydrojet cutter.

It is important to inspect and maintain the valve body regularly to ensure optimal performance of the hydrojet cutter.

4. Replacement

Replacing the Valve Body 20468617 requires specialized knowledge and tools, and is typically performed by a qualified technician.

The replacement process involves disassembling the intensifier pump, removing the old valve body, and installing the new valve body according to our manufacturer’s specifications.

Proper installation and calibration of the new valve body is critical to ensure optimal cutting performance and prevent leaks.

5. Maintenance

Regular inspection and maintenance of the Valve Body 20468617 is important to ensure optimal performance of the hydrojet cutter.

This includes checking for wear on the valve body, inspecting the surrounding components for damage or wear, and replacing the valve body as needed.

90000 psi Waterjet Pump
90K Hydrojet Cutter

Any other questions, please contact us.
