Description

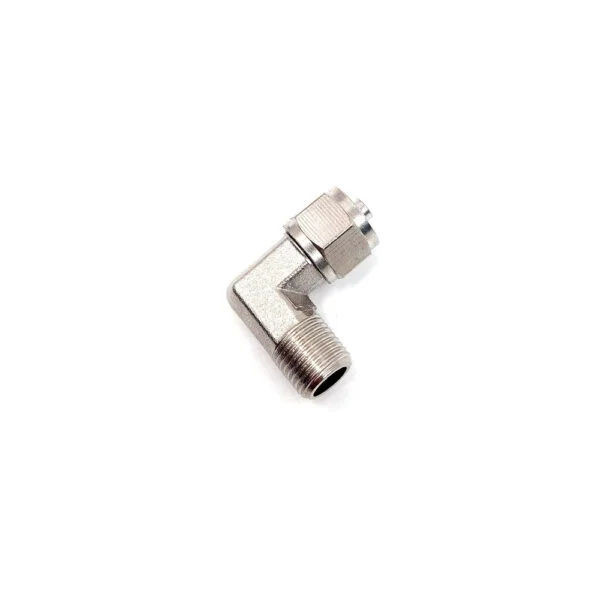

10077030 COUPLING,90°MALE,0.25″x0.13″ 60000 psi waterjet
Main parts for SL-IV 50HP pump:
| Item | Product NO. | Product Name | Picture |
| 1 | 05144647 | HP Cylinder |  |
| 2 | 05144688 | Sealing head assembly |  |
| 3 | 05144696 | Sealing head spacer |  |
| 4 | 05144712 | Cylinder liner |  |
| 5 | 05149703 | Seal assembly |  |
| 6 | 05130091 | Hydraulic cartridge |  |
| 7 | 05119151 | Ceramic plunger |  |
| 8 | 05116561 | HP poppet |  |
| 9 | 05116751 | Poppet pin |  |
| 10 | 05144670 | Poppet retainer |  |
Knowledge for waterjet cutting machine and waterjet spare parts.
Is there a requirement for the diameter of the high pressure hose connecting the accumulator to the water jet cutting machine 60000 psi waterjet?
The diameter of the 60000 psi waterjet high-pressure pipe connecting the accumulator to the water jet cutting machine depends on a number of factors, including system design, operating pressure and flow requirements. Below are some common considerations and general guidelines:
Working Pressure: The working pressure requirements of the water jet cutting system need to be determined first. The higher the working pressure, the larger the diameter of the high pressure hose will typically be to meet the required flow and pressure requirements.
Flow Requirements: The flow requirements of the water jet cutting system 60000 psi waterjet are also an important factor in determining the diameter of the high pressure hose. Larger diameters provide larger flow paths, allowing more flow to pass through the high pressure hose.
Pipe Length: The length of the pipe will also have an impact on the selection of the high pressure pipe diameter. Longer pipes cause greater pressure loss, so a larger diameter high pressure hose may be needed to compensate for this pressure loss and to ensure that sufficient flow reaches the cutting head.
Material Strength: 60000 psi waterjet High pressure tubing needs to be able to withstand the working pressures in the system, so its material selection and strength is also a consideration. Common high pressure hose materials include stainless steel, copper alloys and specialized polymers.
It is important to note that specific high pressure hose diameter selection needs to be evaluated based on the actual system design and requirements. It is recommended to refer to the water jet cutting machine manufacturer’s guidelines or consult a specialized water jet cutting system supplier for accurate 60000 psi waterjet high-pressure tube diameter recommendations. Also, ensure compliance with relevant safety standards and regulations, and follow proper installation and operating instructions.
If you are interested in any waterjet products from Win-Win Water Jet Supplier, contact me please.
The below video shows our new order for two SL-VI (50HP) intensifier pump 60000 psi waterjet in testing, packaging to shipped:
