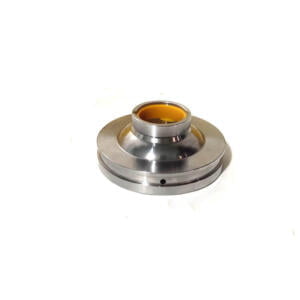

UHP Seal Assembly 72158494 is a key part of the 90,000psi waterjet intensifier pump.
Article | Numéro de pièce | Description | Quantité | Article | Numéro de pièce | Description | Quantité |
1 | 05146592 | Joint d’étanchéité, Topworks Support | 2 | 14 | 72162253 | Ventouse | 2 |
2 | 20476377 | Soutien, Topworks | 2 | 15 | 05130091 | Cartouche de joint hydraulique | 2 |
3 | 10118206 | Joint torique, 1.31×1.56× .13 | 2 | 16 | 72175989 | Bride de retenue de bague | 2 |
4 | 05144514 | Vérin hydraulique | 1 | 17 | 72158494 | Assemblage de joints UHP | 2 |
5 | 05098991 | Vis à tête creuse, 3/8-16×3-3/4 | 8 | 18 | 72166738 | Cylindre UHP | 2 |
6 | 95688743 | Rondelle de blocage, .38 | 8 | 19 | 72163802 | Paquebot | 2 |
7 | 72101190 | Assemblage du piston | 1 | 20 | 20474325 | Goujon, 1-1/8-12×18.31 | 8 |
8 | 10074771 | Joint torique, 5.25×5.50× .13 | 2 | 21 | 72170157 | Assemblage de la tête de scellage | 2 |
9 | 05120092 | Anneau de secours, 5.25×5.50× .13 | 2 | 22 | 72178493 | Assemblage de brides | 2 |
10 | 72175997 | Culasse hydraulique | 2 | 23 | 20464590 | Rondelle plate, 1.13 | 8 |
11 | 05097886 | Vis à tête creuse, 3/4-16×2-1/4 | 12 | 24 | 20461761 | Écrou hexagonal, 1-1/8-12 | 8 |
12 | 05144183 | Ensemble d’entretoise, interrupteur de proximité | 2 | 25 | 20489339 | Adaptateur, JIC/Tuyau, 50× .38 | 1 |
05144191 | Joint torique, .69× .88× .09 | 26 | 72176756 | Joint torique, 3,88×4,25× .19 | 6 | ||
13 | 72141569 | Kit, Détecteur de proximité | 2 | ||||
| 72134224 | Commutateur de proximité | ||||||
95119012 | Vis à tête creuse, 1/4-20×1 |
The UHP Seal Assembly is responsible for sealing the high-pressure water inside the system of 90,000psi waterjet intensifier pump and preventing leaks.
The seal is a specialized component that is designed to withstand the extreme pressures and abrasive nature of the waterjet stream.
It is typically made of a high-performance material such as polyurethane or Teflon, which can withstand high pressures and abrasion.
Here are some of the most common issues that can affect the UHP Seal Assembly of 90,000psi waterjet intensifier pump.
These issues lead to leaks and a decrease in pressure, and may require repairs or replacement:
1. Seal wear
The seal is the most critical component of the UHP Seal Assembly and can wear down over time due to the abrasive particles in the waterjet stream.
2. Plunger wear
The plunger can also wear down over time due to the abrasive particles in the waterjet stream.
3. Retaining ring damage
The retaining ring can become damaged due to the high pressures and vibrations of the waterjet system.
4. Spacer misalignment
The spacer can become misaligned due to wear or damage, which can cause misalignment of the plunger and seal, leading to leaks and a decrease in pressure.
5. O-ring failure
The o-rings can fail due to wear or damage.
There are several signs that the UHP Seal Assembly of 90,000psi waterjet intensifier pump may need to be replaced:
1. Leaks
If you notice leaks around the sealing head or the UHP Seal Assembly, it could be a sign that the seal or plunger is worn or damaged and needs to be replaced.
2. Decreased pressure
If you notice a decrease in the pressure of the waterjet stream, it could be a sign that the UHP Seal Assembly is worn or damaged and needs to be replaced.
3. Unusual sounds
If you hear unusual sounds coming from the waterjet system, such as rattling or grinding noises, it could be a sign that the UHP Seal Assembly is misaligned or damaged.
And it needs to be inspected and replaced if necessary.
4. Excessive vibration
If you notice excessive vibration in the 90,000psi waterjet system, it could be a sign that the UHP Seal Assembly is misaligned or damaged and needs to be inspected and replaced if necessary.
5. Visual inspection
If you visually inspect the UHP Seal Assembly and notice any signs of wear, damage, or misalignment, it could be a sign that the components need to be replaced.
If any issues are detected, it is important to address them promptly to prevent any further damage or potential safety hazards.
If you are unsure about the condition of the UHP Seal Assembly or any other components of 90,000psi waterjet cutter, it is recommended to consult with us for guidance.
