Waterjet cutting machine parts

Item number: 104604

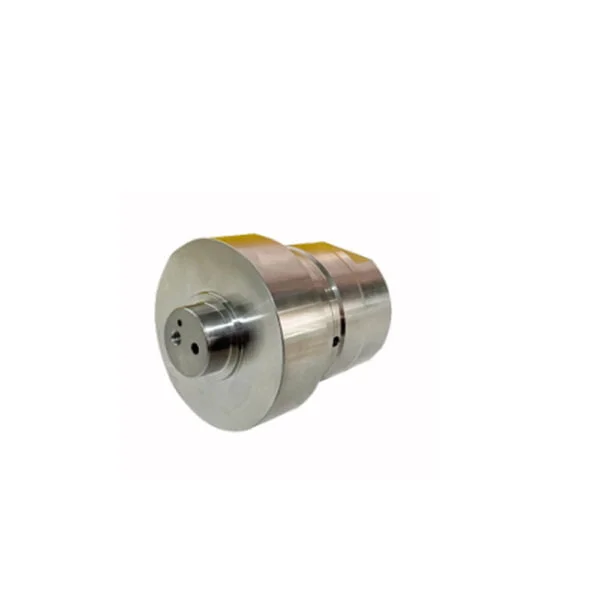

Usage: used on the resato waterjet pump, normally there will be two waterjet check valve bodies of waterjet pump, they are installed symmetrically at both ends of the intensifier

FAQ of waterjet cutting machine parts and waterjet cutting system – What are the components of waterjet cutting?

Generally, there are six types of products:

1. Waterjet cutting nozzle or someone also called it the waterjet mixing tube; the mixing tube is used on the waterjet cutting head to mix the high pressure water and also the speeding abrasive garnets, so it will wear a lot, so it must be made of super wear-resistant materials. There are many brands and different materials of waterjet mixing tubes on the market. Their prices are different and their quality is also different. Choose according to the actual situation of each user.
2. Waterjet orifice also called the waterjet nozzle, normally there are ruby orifices and also the diamond orifice, the service life of the diamond orifice is dozens of the ruby one and also the price will be more expensive, but use the diamond orifice can reduce the disassemble times of the cutting head and reduce downtime and wear of dismantled parts on other related waterjet cutting machine parts.
3. Waterjet pump and related pump parts; the pump is the core device of the whole set waterjet cutting system, it’s the device to pressuring the normal water to high pressure water about 400-900Mpa to cut materials even the steel, the main parts of the pump are: waterjet hydraulic cylinder, waterjet hydraulic piston, waterjet manifold, electrical shift valve, high pressure repair kits, hydraulic cylinder head, shift sensor repair kits, tie rod of the hydraulic cylinder head, ceramic plunger, liner, check valve body, check valve repair kits, high pressure cylinder etc.
4. Waterjet cutting head and related head spare parts; including the air actuator, on off valve repair kit, on off valve body, mixing chamber, nozzle body, nozzle nut, dust proof, nozzle etc.
5. Waterjet high pressure tubing and fittings etc. the high pressure tubing are normally 1/4″, 3/8″ and 9/16″ etc.
6. Waterjet install tools etc. high pressure seal tool, high pressure cylinder wrench, support etc.

Win-Win provide various waterjet cutting machine parts suitable for many brands waterjet machine, if you are looking for the supplier, do not hesitate to contact us!
