90K Water Jet Cutting Machine Parts 20455812 Tee

Category:

Description

90K Water Jet Cutting Machine Parts: Tee 20455812

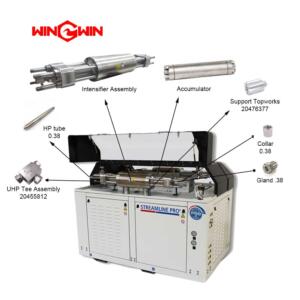

Intensifier Assembly 72170165
Intensifier Assembly 72170165

Item

Part NumberDescriptionQuantityItemPart NumberDescriptionQuantity

1

05146592Gasket, Topworks Support21472162253Plunger

2

2

20476377Support, Topworks21505130091Hydraulic Seal Cartridge

2

3

10118206O-Ring, 1.31×1.56× .1321672175989Bushing Retainer Flange2

4

05144514Hydraulic Cylinder11772158494UHP Seal Assembly

2

5

05098991Socket Head Screw, 3/8-16×3-3/481872166738UHP Cylinder

2

6

95688743Lock Washer, .3881972163802Liner

2

7

72101190Piston Assembly12020474325Stud, 1-1/8-12×18.31

8

8

10074771O-Ring, 5.25×5.50× .1322172170157Sealing Head Assembly

2

9

05120092Backup Ring, 5.25×5.50× .1322272178493Flange Assembly

2

10

72175997Hydraulic Cylinder Head22320464590Flat Washer, 1.13

8

11

05097886Socket Head Screw, 3/4-16×2-1/4122420461761Hex Nut, 1-1/8-12

8

12

05144183Spacer Assembly, Proximity Switch22520489339Adapter, JIC/Pipe, 50× .38

1

05144191

O-Ring, .69× .88× .092672176756O-Ring, 3.88×4.25× .19

6

13

72141569Kit, Proximity Switch2

72134224Proximity Switch

95119012

Socket Head Screw, 1/4-20×1

90K Water Jet Cutting Machine Parts 20455812 Tee
90K Water Jet Cutting Machine Parts 20455812 Tee

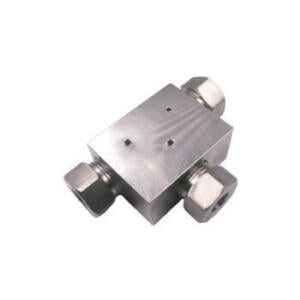

A Tee is one of water jet cutting machine parts that is commonly used in 90k intensifier pumps.

The Tee fitting gets its name from its T-shaped cross-section, which has one input and two outputs.

In a waterjet pump, Tees may be used to split the flow of water between two different water jet cutting machine parts, such as the pump and the cutting head.

They may also be used to combine the flow from two different sources, or to change the direction of flow within the system.

The specific design and specifications of the Tee used in a 90k waterjet pump may vary depending on the manufacturer and model of the pump, as well as the specific application within the system.

Factors such as the diameter, wall thickness, and material of the Tee may be optimized for maximum efficiency and reliability in the particular application.

Tees are made from various materials, containing metals like stainless steel or brass, or plastics like PVC or polypropylene.

The choice of material depends on factors such as the pressure and temperature of the system, as well as the presence of any corrosive or abrasive substances in the fluid being pumped.

Proper installation of the Tee fitting is important to ensure the safe and efficient operation of the waterjet pump.

The Tee fitting should be installed in the correct orientation, with the input and output branches aligned properly with the flow of water through the system.

The fitting should be securely fastened using appropriate hardware, such as bolts or clamps.

90000 psi Waterjet
90K Water Jet Cutting Machine Parts

Any other requirements for water jet cutting machine parts, please consult with us.
